The Sorensen DLM 600 series of DC programmable power supplies are designed to provide continuously variable DC output voltage and current for a broad range of applications in a compact 1U (1.75 inches) high, half-rack (8.5 inches) wide chassis.

With the use of Zero Voltage Switching (ZVS) technology, these supplies can achieve exceptionally low ripple and noise rivaling larger and more expensive linear power supplies.

In addition, the high efficiency and fast load transient response assure that the DLM 600 1/2 rack DC power supply is ideal for even the most demanding applications.

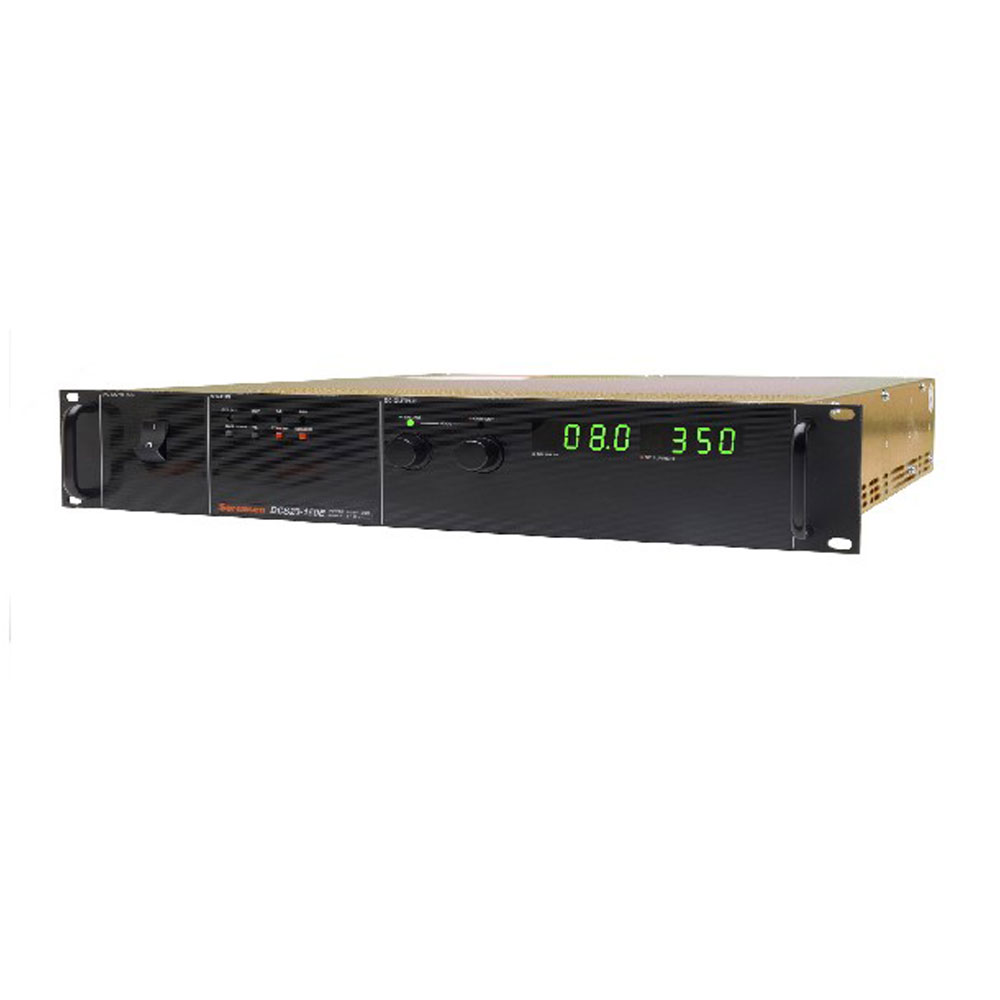

The DCS Series of 1 kW, 1.2 kW, and 3 kW DC programmable power supplies provides a highly reliable switch mode power supply platform.

This switched-mode DC power supply utilizes unique packaging techniques to achieve continuous full output power (1 kW, 1.2 kW, or 3 kW) in any volt/amp combination within the rated output voltage and current limits in a low-profile chassis.

This multi-range DC power supply family has an easy-to-use front panel with 10-turn potentiometers to adjust voltage and current settings that are displayed simultaneously. LEDs indicate overtemperature, remote programming, shutdown, and over-voltage protection, status, and constant voltage/current mode operation.

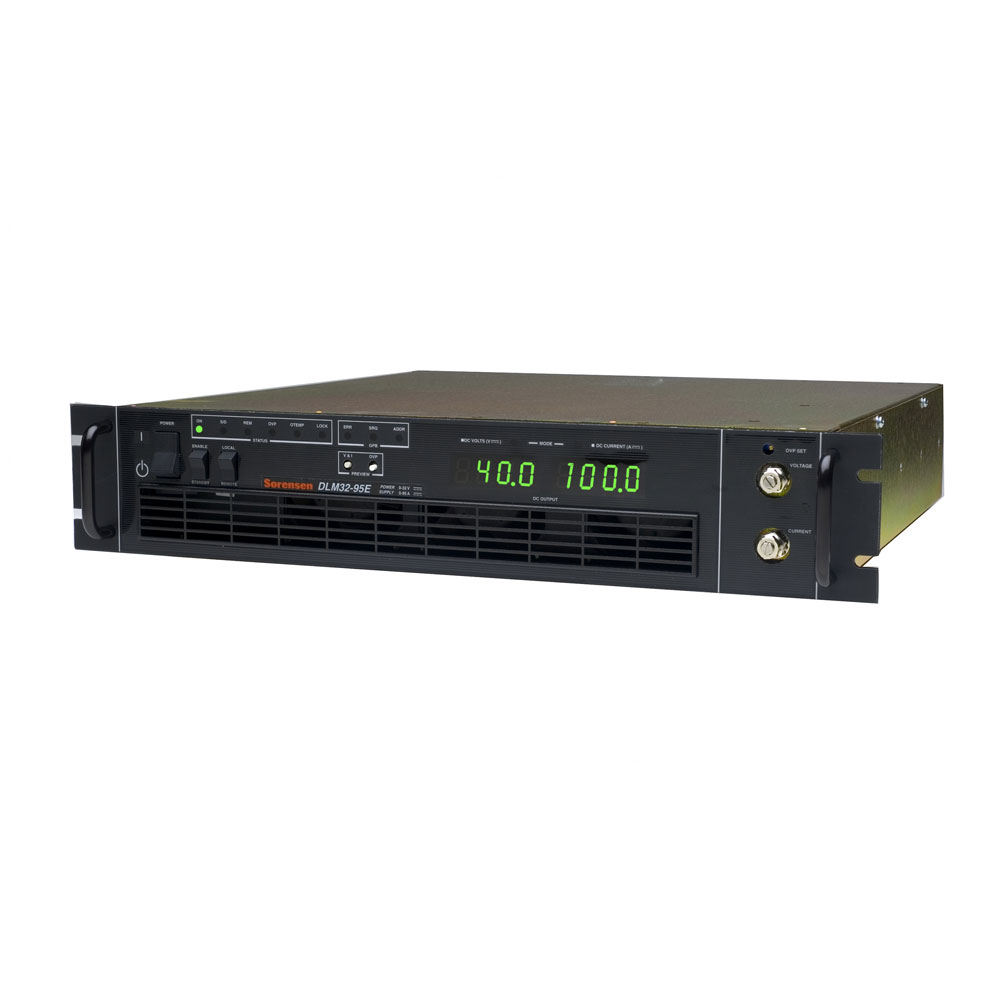

The Sorensen DLM 3kW and 4kW Series programmable DC power supplies are designed to provide highly stable, continuously variable DC output voltage and current for a broad range of applications in a compact 2U (3½” high) chassis.

The 3 kW and 4 kW 2U rackmount DC power supply models have output voltages from 0-5 VDC to 0-600 VDC and a current range from 0-5A to 0-450A. The output rms noise is as low as 10 mV. The output will recover to 1% of its steady-state voltage within 1ms for a step load change of 100% to 70% or 70% to 100%. The front panel layout makes the series extremely easy to use. Control switches include power on, enable/ standby, and local/ remote.
